Ultra Fine pixel pitch & Ultra high definition
We provice a full range of pixel pitches included P0.9, P1.2, P1.5, P1.8 and P2.5 to meet almost the vary project requirements.
Fine Pitch HD WALL LED DISPLAY · GLOBAL DELIVERY
Fine Pitch HD LED Display 27" Ultra high definition indoor LED Display
HD Wall(High Definition) LED Display can be a large digital signage for the boardroom or airport, the high-resolution display with high detailed content suit almost every indoor application.
- Pitch
- P0.9-P2.5
- Cabinet weight
- 4.5 kg
- Service Type
- Front
- Certification
- CE | FCC
Ultra high definition Integrated LED Display
27" Ultra HD
Our range of HD Wall LED Display Series is the high definition display with very fine pixel pitches, nothing beats our HD LED video wall direct view LED solutions for large, and high-detail content viewed from a close distance. We offer high-resolution panels for application in settings such as a retail stores or trade show exhibits.
The Aspect ratio on ARECH Fine Pitch HD Wall LED Screen to support a 16:9 ratio is typically seen as optimal visual effect, offering boundless opportunities to create a truly immersive space. Also it is easy to capture this aspect ratio on almost all devices.
Paired with ultra-fine, precise pixel pitches, every model delivers flawless native Full HD, 4K and 8K resolution
WHY ARECH
Why ARECH for Fine Pitch HD Wall LED Display
High Clarity, high Contrast- Brilliant visuals at every pixel
SPECIFICATIONS
HD Wall series Specification
The full spec ladder for the HD Wall series. Confirm the row that fits the install, then request the PDF spec sheet for the variant.
Fine Pitch HD Wall Series Spec 16:9
Additional fine pitches available on request when the brief calls for sub-P1.2 resolution.
| Parameter | ACIDP00.9HD | ACIDP01.2HD | ACIDP01.5HD | ACIDP01.8HD | ACIDP02.5HD |
|---|---|---|---|---|---|
| Pixel Pitch | 0.9mm | 1.2mm | 1.5mm | 1.8mm | 2.5mm |
| LED Type | SMD | SMD | SMD | SMD | SMD |
| Module Dimension WxH | 300x168.75mm | 300x168.75mm | 300x168.75mm | 300x168.75mm | 300x168.75mm |
| Cabinet Dimension WxH | 600x337.5mm | 600x337.5mm | 600x337.5mm | 600x337.5mm | 600x337.5mm |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight | 4.5kg | 4.5kg | 4.5kg | 4.5kg | 4.5kg |
| Service Type | Front | Front | Front | Front | Front |
| Brightness | 500-600nits | 500-600nits | 500-600nits | 500-600nits | 500-600nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Hor. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Vert. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Power Consumption | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) |
| Refresh Rate | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 |
| Operating Power Voltage | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Operating Humidity | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% |
| Standard | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC |
Fine Pitch HD Wall Series Spec 4:3
| Parameter | ACIDP01.2GM | ACIDP01.5GM | ACIDP01.6GM | ACIDP01.8GM | ACIDP02.0GM | ACIDP02.5GM |
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.2mm | 1.5mm | 1.6mm | 1.8mm | 2.0mm | 2.5mm |
| LED Type | SMD | SMD | SMD | SMD | SMD | SMD |
| Module Dimension WxH | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm | 320x160mm |
| Cabinet Dimension WxH | 640x480mm | 640x480mm | 640x480mm | 640x480mm | 640x480mm | 640x480mm |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Cabinet Weight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg |
| Service Type | Front | Front | Front | Front | Front | Front |
| Brightness | 500-600nits | 500-600nits | 500-600nits | 500-600nits | 500-600nits | 500-600nits |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Hor. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Vert. Viewing Angle | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) | 140° +/-5° (@50% brightenss) |
| Power Consumption | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) | 280 W/m2(typ.) |
| Refresh Rate | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable |
| IP Rating | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Operating Power Voltage | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz | 100-240V / 50-60Hz |
| Operating Temperature | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C | -10°C to +40°C |
| Operating Humidity | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% | -10% to 90% |
| Standard | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC | CE / FCC |
Advantages of fine pitch HD wall LED Display
- Image quality: Precision Beyond Resolution
- High quality: EMC/ CE
- Fully front maintenace: All parts front accessible, include module, power supply, controller etc., saving up to 60% of structural space
- Modular standaridization: Unified cabinet dimension ensure spare part interchangeability and cost effective upgrades
- Friendly optional brightness: 600nits/ 2500nits
Pictures gallery

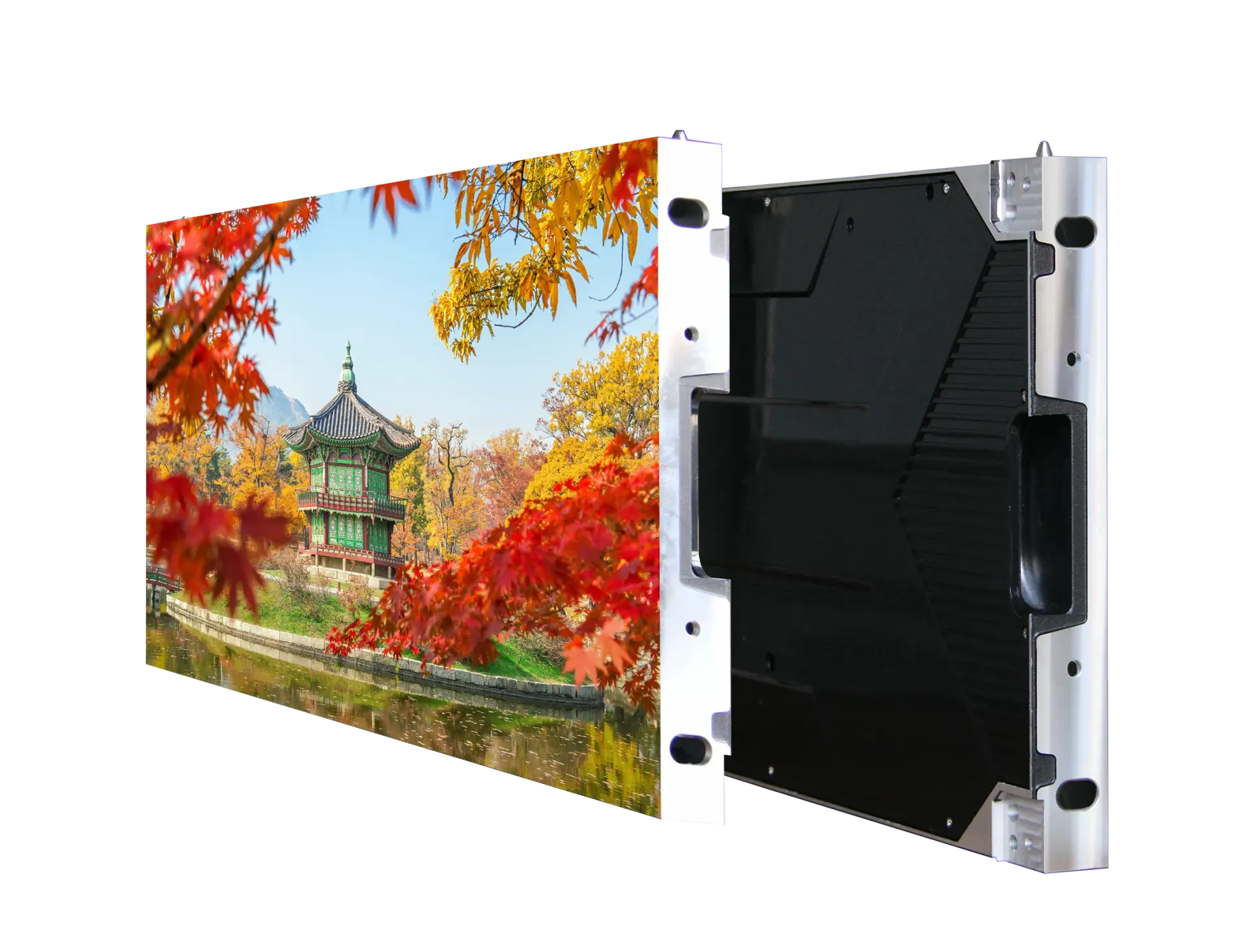

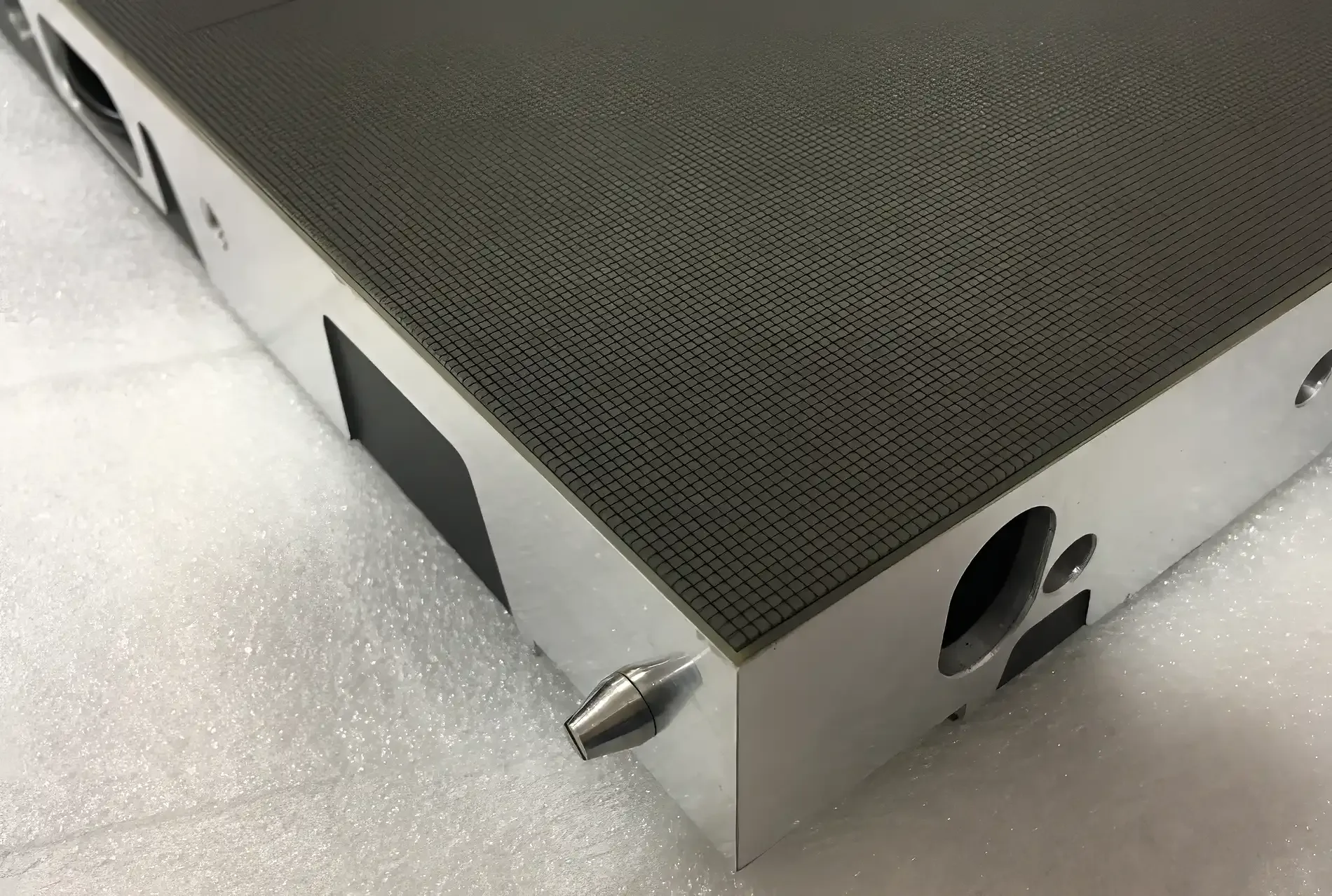

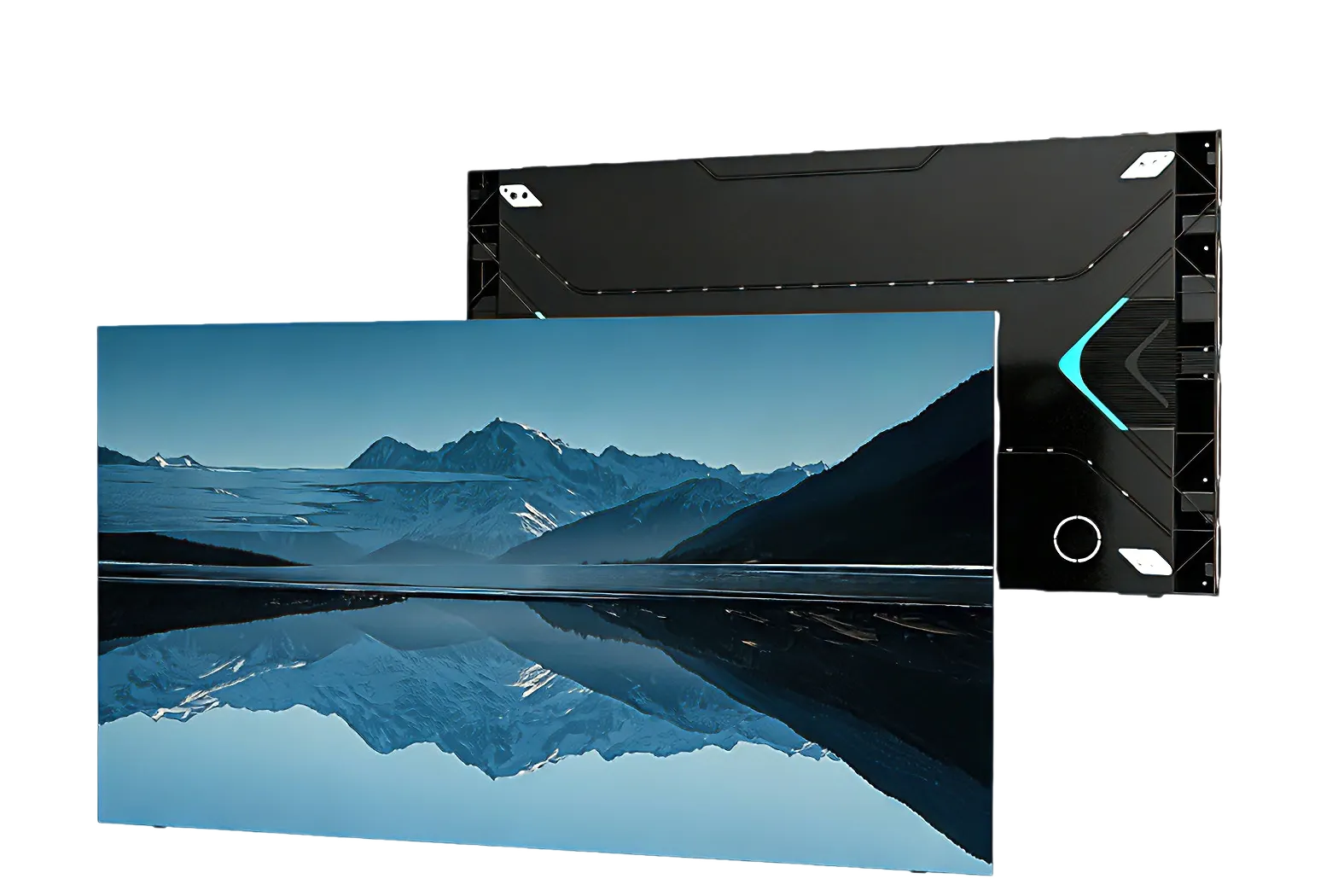

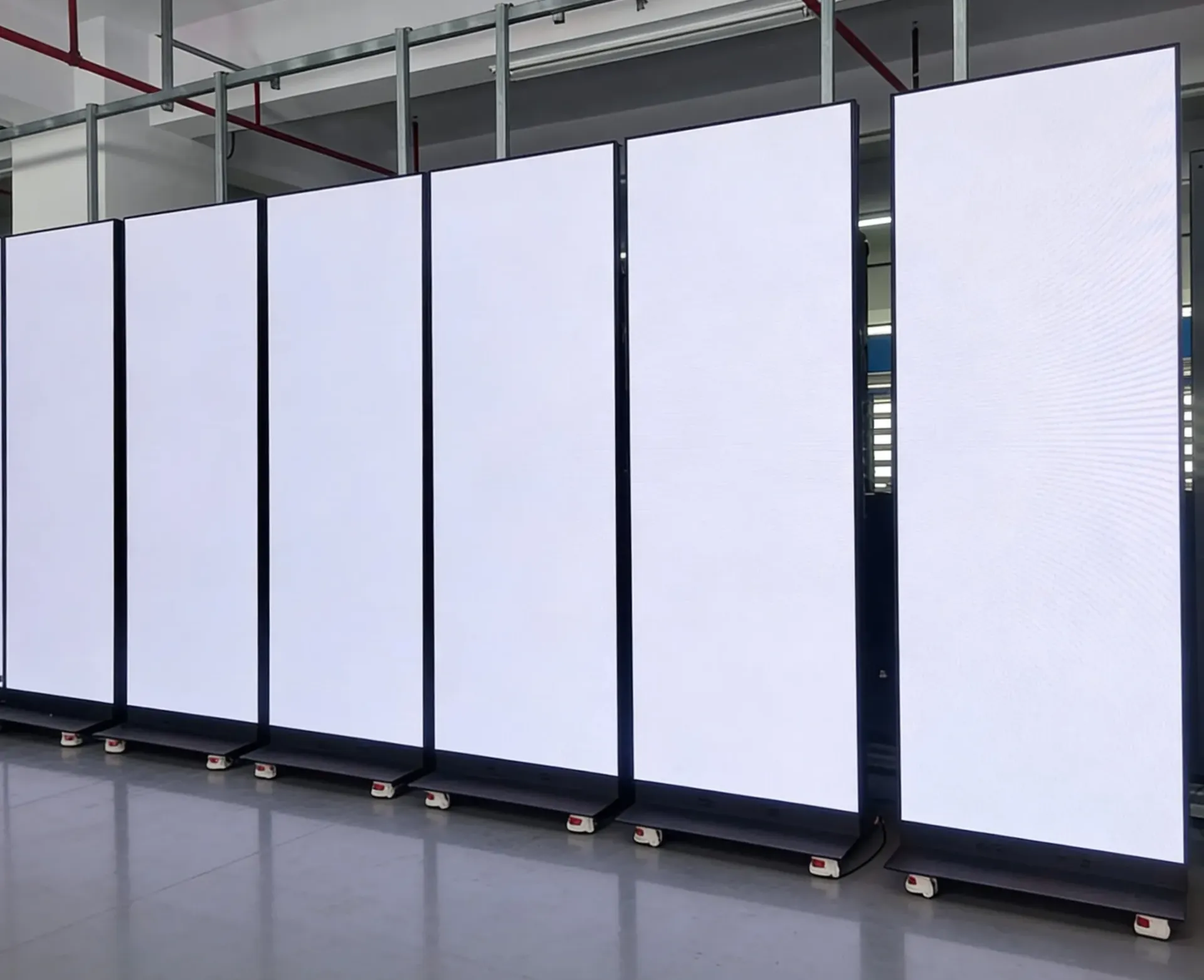

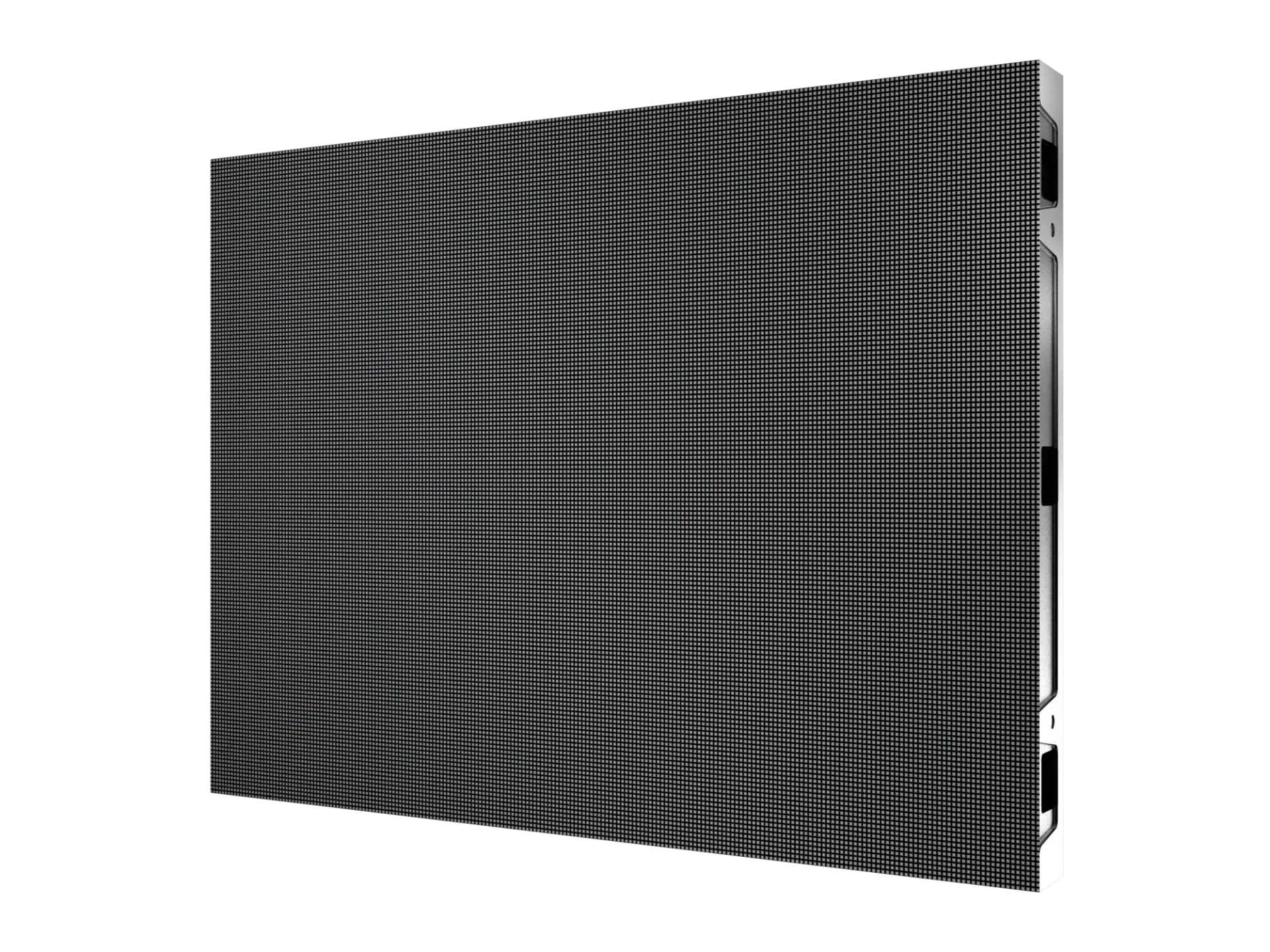

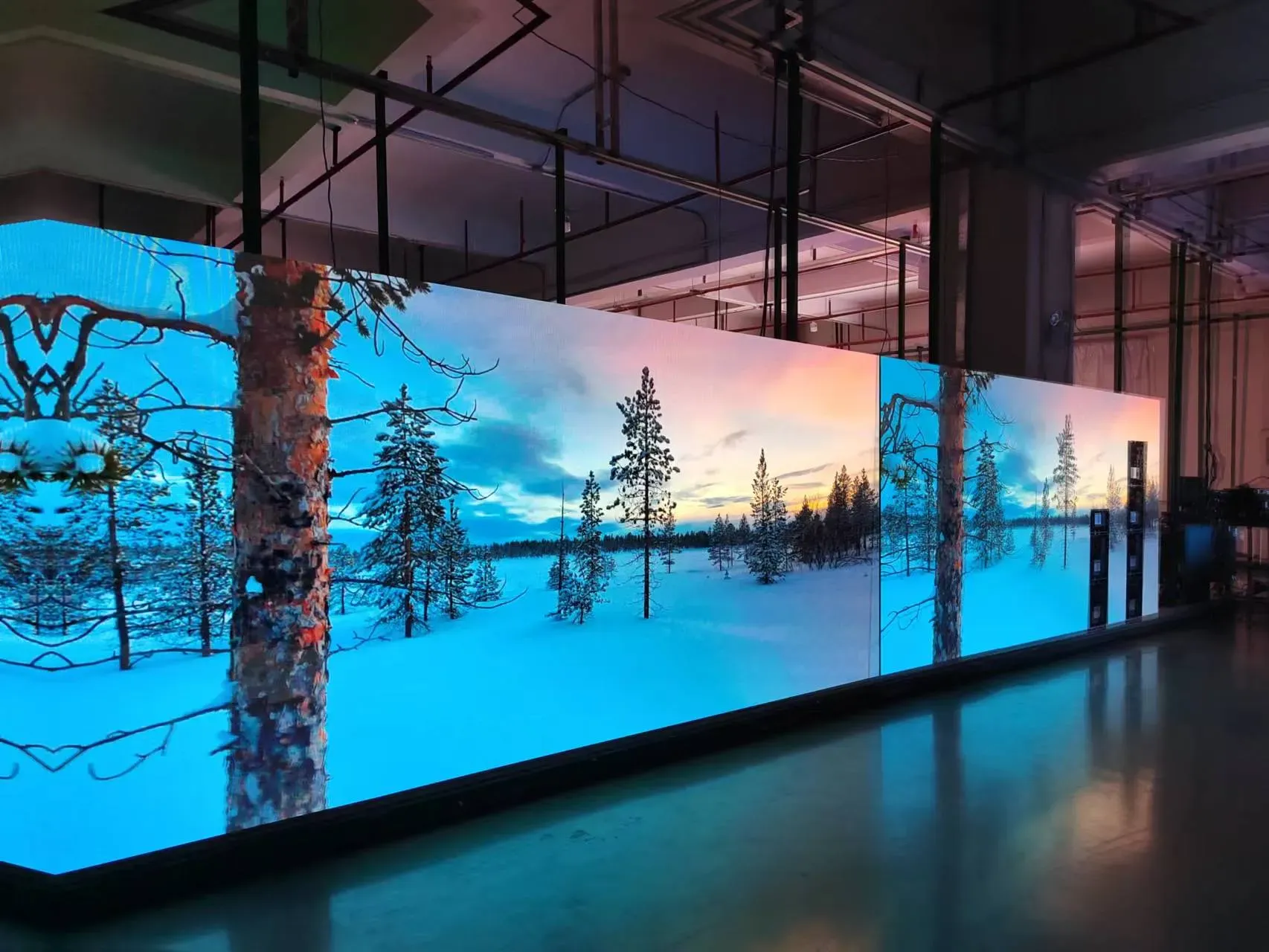

HD Wall LED Display screen Pictures
APPLICATIONS
Where Fine Pitch HD Wall Displays Prove Their Worth
Engineering the perfect canvas for every space
Versatile Pixel Pitch| 2K/4K Ultra HD
We, ARECH provide a range of pixel pitches from 0.9mm to 2.5mm, suitable for various viewing distances and resolutions. It enables users to seamlessly create large-scale displays in 2K, 4K, or 8K without sacrificing image clarity or uniformity.
- Standard Pre-configured 2K Solutions (1920x1080px)
P0.9 (1800x1013mm, wxh), 3x3pcs 600x337.5mm cabinet
P1.2 (2400x1350mm, wxh), 4x4pcs 600x337.5mm cabinet
P1.5 (3000mx1688m, wxh), 5x5pcs 600x337.5mm cabinet
- Standard Pre-configured 4K Solutions (3840x2160px)
P0.9 (3600x2025mm, wxh), 6x6 pcs 600x337.5mm cabinet
P1.2 (4800x2700mm, wxh), 8x8 pcs 600x337.5mm cabinet
P1.5 (6000x3375mm, wxh), 10x10pcs 600x337.5mm cabinet

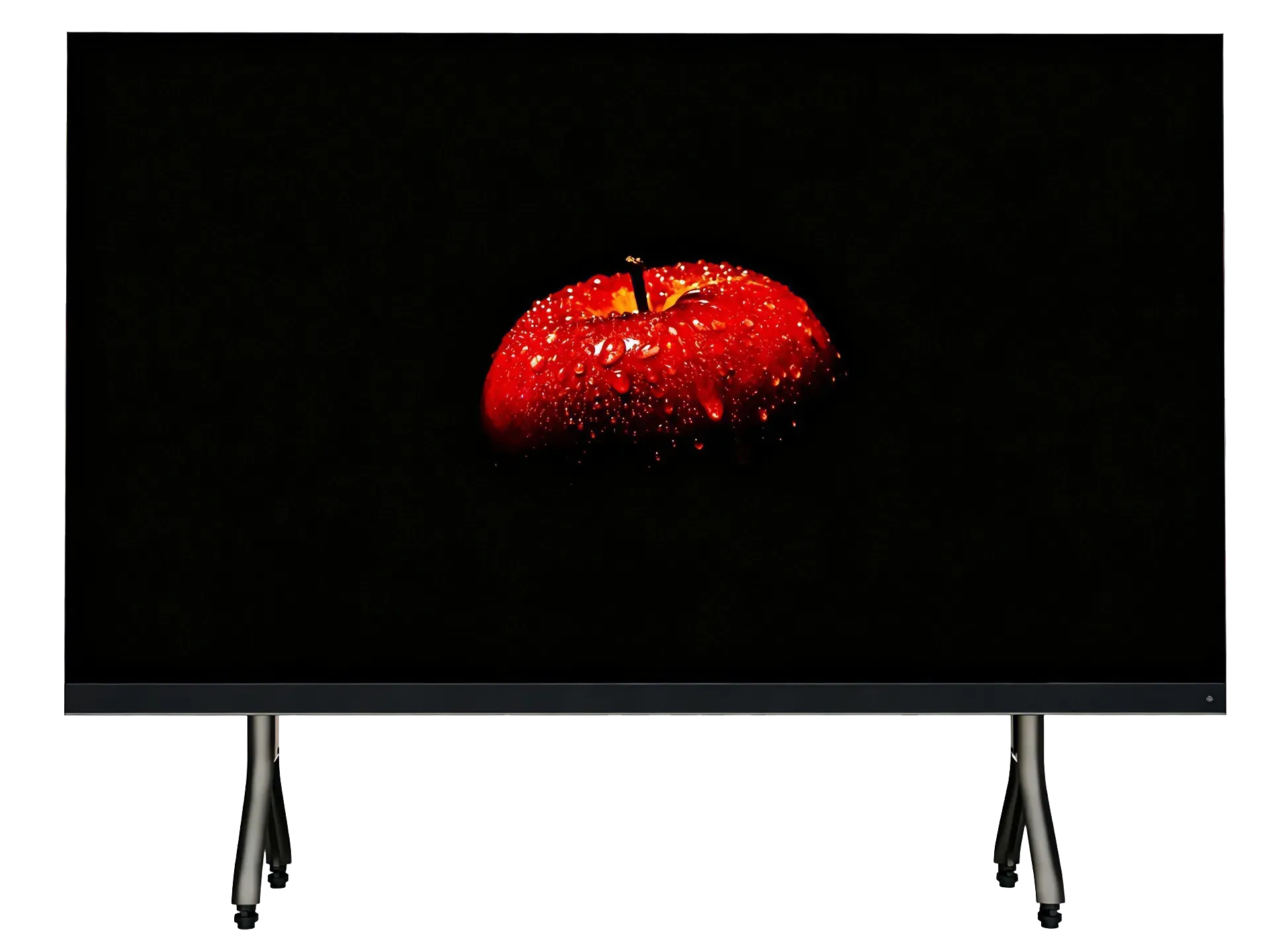

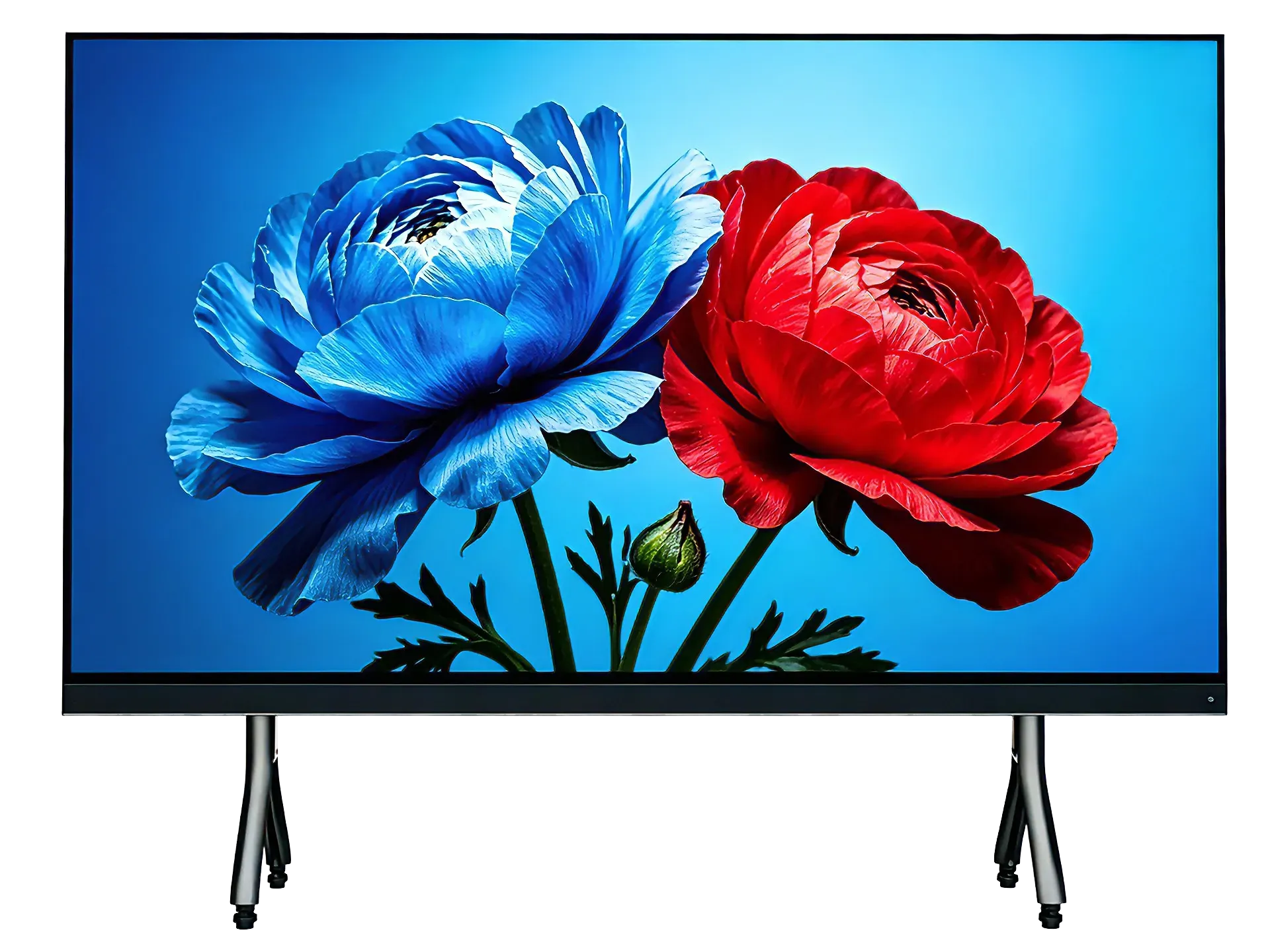

All models come with pre-configured display resolution, featuring a unified structure, fast set-up, and easy maintenance. Designed with an all-in-one LED smart TV, it enables both mobile floor-standing and wall-mounted installation, making it perfectly suited for conference rooms, exhibition halls, meeting rooms, and other high-end display scenarios.
COMPARE
How the HD Wall LED Display Range Compares With the Other Four Families
The HD Wall series owns the fine-pitch close-viewing brief. For other briefs:
Indoor LED Screen
Standard indoor close-to-mid-range viewing — lobby walls, retail feature walls, atrium signage.
Explore indoor
Outdoor LED Screen
Open-air weatherproof installation — billboards, building facades, public-plaza screens.
Explore outdoor
Flexible LED Screen
Curved or sculptural surfaces — column wraps, dome ceilings, free-form features.
Explore flexible

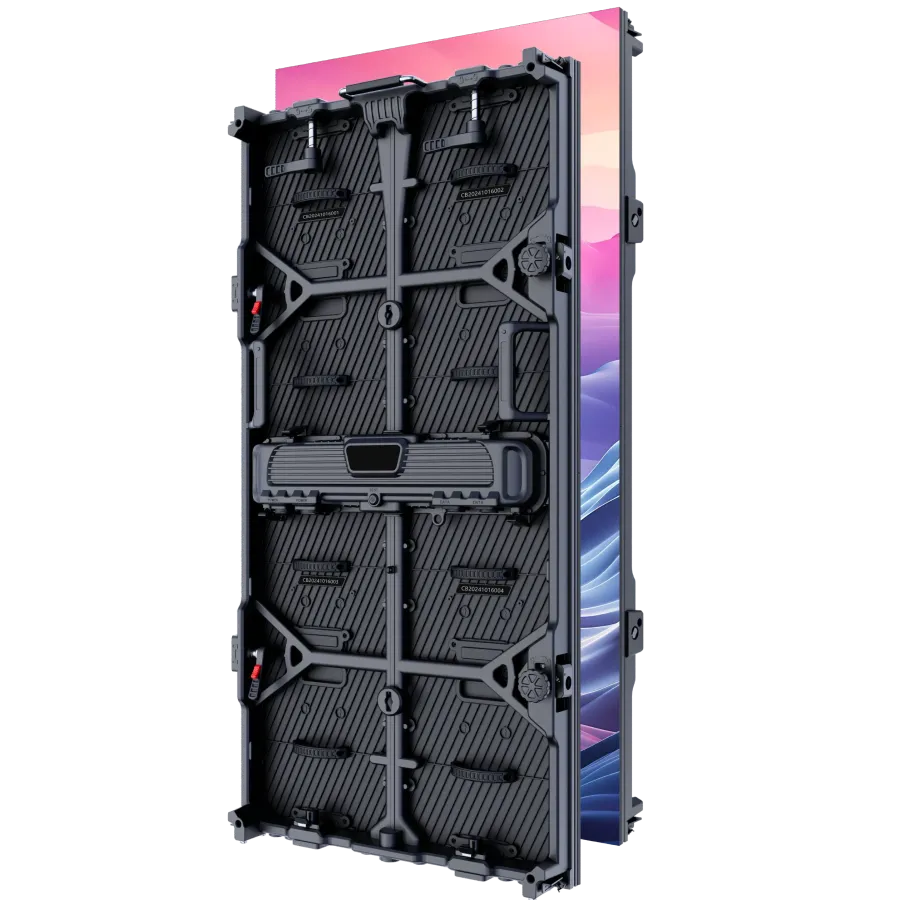

Rental LED Display
Touring or event installation — concerts, festivals, expo booths, conference backdrops.
Explore rentalFAQ
HD Wall LED Display — frequently asked questions.
What is the difference between an HD Wall LED display and a standard LED video wall?
Pixel pitch and intended viewing distance. An HD Wall LED display uses a sub-2 mm fine pitch (P0.9 / 1.2 / P1.5 / P1.8), which keeps individual pixels invisible at close range and lets the wall hold image quality at arm's-length viewing. A standard indoor LED video wall typically uses pitches of P2.5 and coarser — fine for lobby and atrium viewing distances, but visibly pixelated at the desk-to-wall distance of a control room or boardroom.

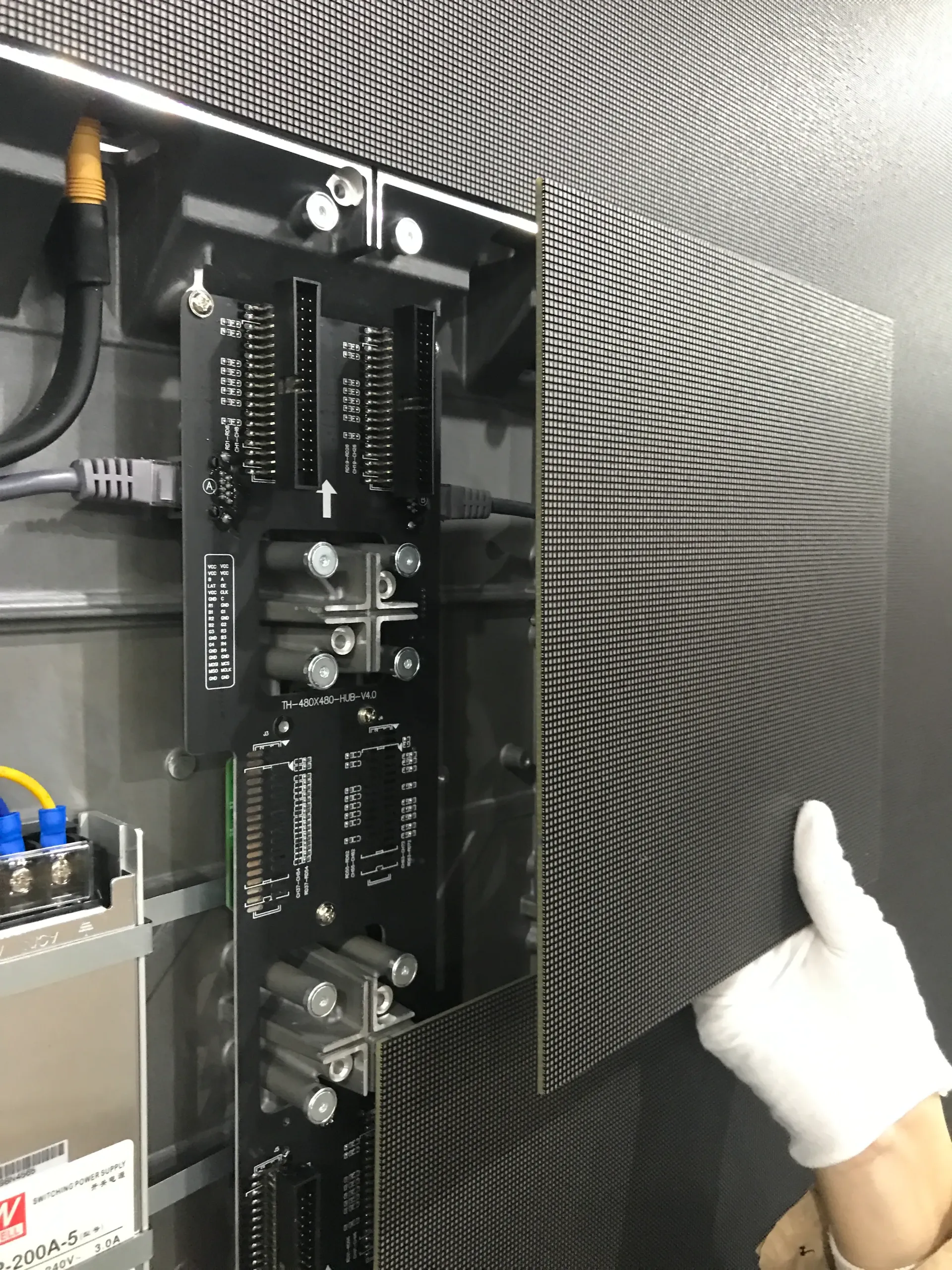

What does "front maintenance" mean and why does it matter for an HD Wall LED display?

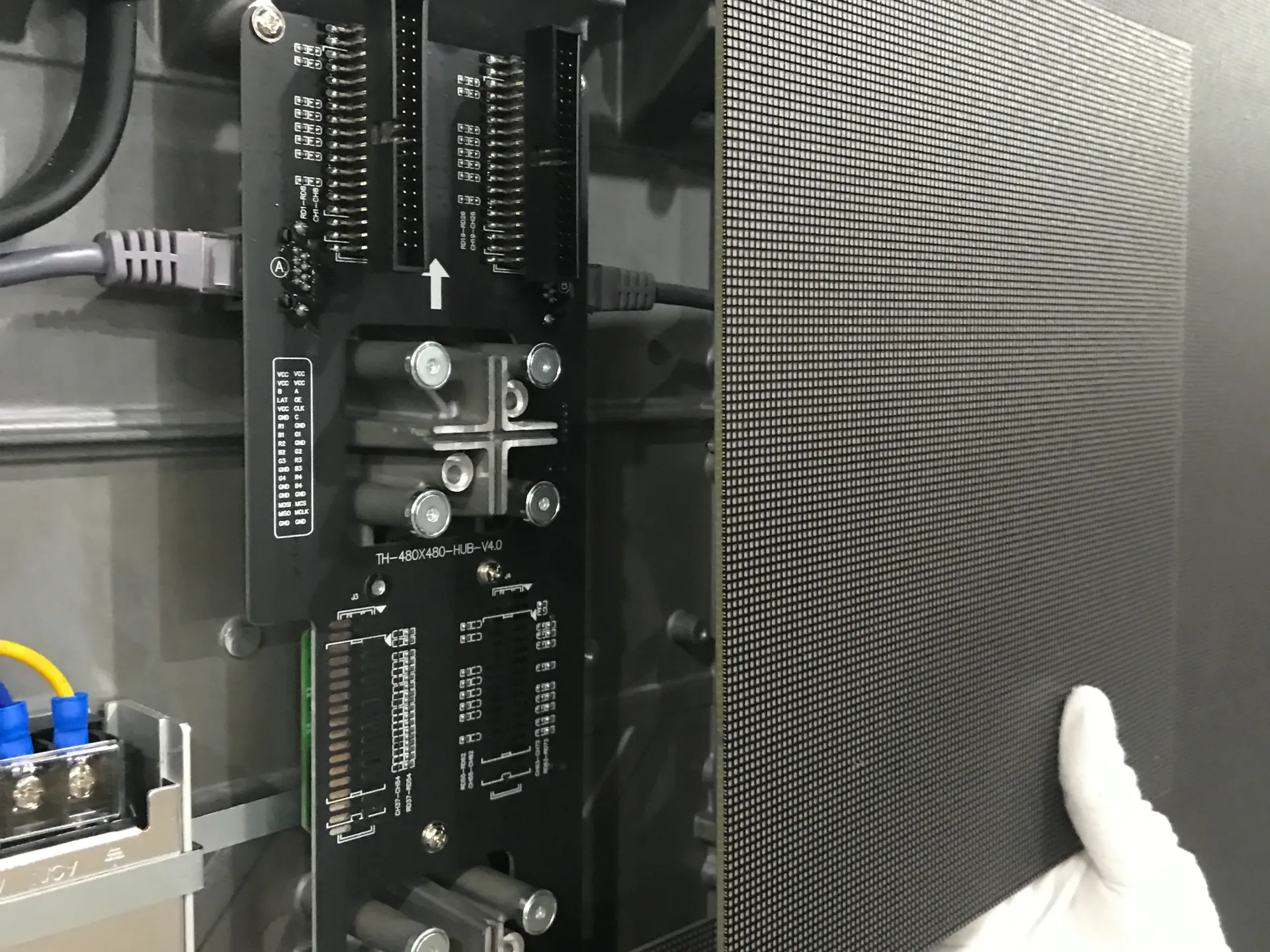

Front maintenance means LED modules, power supplies, and receiving cards all lift out from the front face of the cabinet. It matters because HD Wall installations are usually built flush into a finished wall, recessed inside joinery, or backed by structural elements that block rear access. With front service, a damaged module is replaced from the front without dismantling the surrounding architecture.
What is the typical lead time for an ARECH HD Wall LED display order?
Standard configurations ship within 15 to 25 working days after order confirmation. Large-volume or highly customised projects carry a project-specific timeline confirmed at the quote stage.
Can I see an HD Wall LED display before ordering?
Yes. Demonstration paths include a recorded video walkthrough, references to installed sites the customer can visit or video-tour, and a single-cabinet sample shipped to the project location for hands-on evaluation before placing the production order.
What warranty and support cover an HD Wall LED display?
Factory warranty across the series covers materials and workmanship. An additional essential-care service plan up to two years provides expert support, calibration check-ins, and maintenance options. Series-specific terms on the warranty page.
How heavy is an HD Wall LED display cabinet?
Each HD Wall cabinet weighs 4.5 kg. The aluminium-profile construction keeps weight low enough to mount on partition walls and on host walls with lower load-bearing capacity, while staying rigid enough to maintain bezel-free splicing across multi-cabinet runs.
SPECIFY
Specify Your HD Wall LED Display
Send the venue dimensions, the closest viewer distance, the content profile (presentation / video / dashboards), the ambient-light plan, and the install context (flush / recessed / freestanding). Reply lands by the next business day: a pitch recommendation, a cabinet count, an itemised price including freight to the destination port, and a production slot you can book against.
